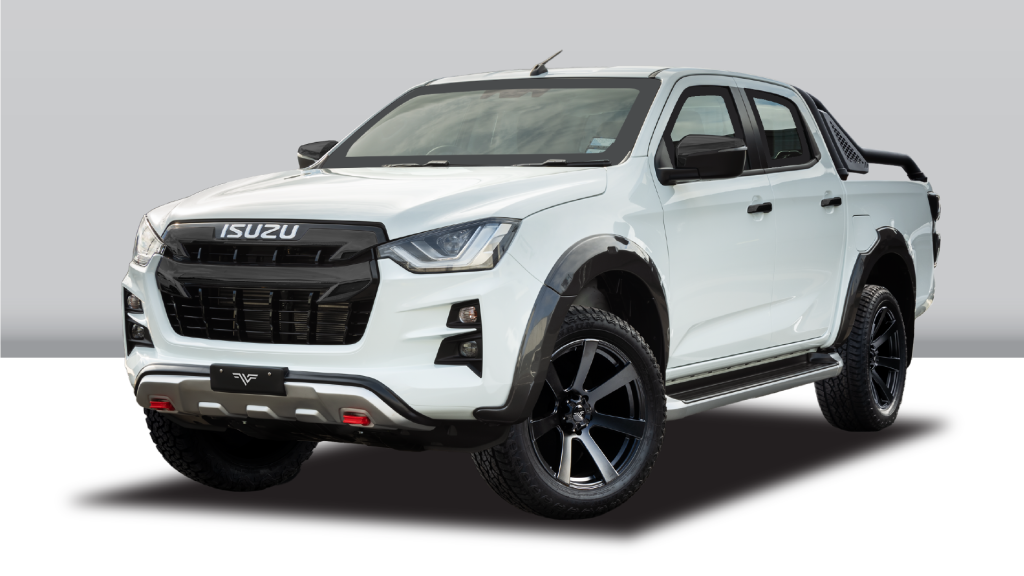

ISUZU D-MAX

ARMOURING SECURITY VEHICLE

FEATURES

assault rifle

7.62 mm x 51mm (.308)

full premiered
Armored up to

CEN 1063

BR6

hand grenade

x2 DM51

Included Features

360°

Perimeter Protection

Optional Equipment & Accessories

Multiple add-ons and upgrades are available to make this armored vehicle suitable for any mission requirement.

Advanced Security Upgrades

Tactical Add-ons

Vehicle Enhancements

Vehicle Specifications

TECHNICAL Specifications

Year

2025

Make

SUV

Model

Isuzu D-Max

Body

Double‑cab pickup

Armor Level

None

Transmission

6‑speed automatic

Engine

3.0 L I4 4JJ3‑TCX

Horsepower / Torque

150–160 PS

Drivetrain

4×2 or 4×4

Dimensions (mm)

5,280 × 1,870 × 1,785 

Wheelbase (mm)

3,125 mm

Seating Capacity

5

PASSENGER CABIN ARMORING (CAPSULE DESIGN)

  • Five-side protection (roof and verticals) in capsule configuration

  • Constructed using 6.5 mm nominal thickness laser-cut ballistic steel

  • Certified to CEN 1063 FB6, capable of withstanding 7.62 × 51mm NATO Ball (SC) ammunition

DOOR PANELS (ALL FOUR DOORS)

  • Armored with ballistic steel with FB6 protection level

CRITICAL COMPONENT PROTECTION

  • Front fenders, battery compartment, and ECU protected using FB6-rated ballistic steel

RADIATOR PROTECTION

  • Front radiator shielded with ballistic steel for frontal ballistic resistance

FLOOR AND FUEL TANK BLAST PROTECTION

  • Reinforced with 4 mm blast steel

TRANSPARENT ARMORING (GLASS)

  • Installation of bullet-resistant windshield, all four side glasses, and bulkhead partition glass

  • Certified to CEN 1063 BR6 standards

REINFORCED DOOR HINGES

  • All door hinges upgraded with ballistic-grade steel reinforcement

RUN-FLAT SYSTEMS

  • Equipped on all five wheels, enabling safe travel even after tire deflation

SUSPENSION UPGRADE

  • Heavy-duty front and rear shock absorbers and springs installed to support additional weight

ACTUATOR SYSTEM

  • Electric actuator installed on the driver-side door for improved functionality and ease of access.

OPTIONAL ITEMS (If Required):

  1. Heavy Duty upgrade Brake Discs and Pads
  2. Actuator on Left Hand front side
  3. Power Enhancement Chip
